NEW QUESTION # 50
Which of the following IPv6 addresses is a link-local address ?
- A. 2001::FA63:DBFF:FE9E:10
- B. FD00::FA63:DBFF:FE9E:10
- C. FE80::FA63:DBFF:FE9E:10
- D. FC00::FA63:DBFF:FE9E:10
Answer: C
Explanation:
In IPv6, link-local addresses use the prefix FE80::/10 . These addresses are automatically generated or configured for communication on the local link only and are not routed across Layer 3 boundaries. Therefore, among the given options, FE80::FA63:DBFF:FE9E:10 is the correct link-local address, making option C correct.
Options A and B belong to the Unique Local Address (ULA) space, which uses the prefix FC00::/7 . These addresses are intended for private internal IPv6 networks, somewhat similar in purpose to private IPv4 address ranges, but they are not link-local addresses. Option D , which starts with 2001::, is a global unicast address , used for routable communication across IPv6 networks. HCIA-Datacom teaches that link-local addresses are essential in IPv6 because they are used for functions such as neighbor discovery, router discovery, and routing protocol communication on the local segment. Even when a device has global unicast addresses, the link-local address still plays an important role in normal IPv6 operation and protocol adjacency establishment.
NEW QUESTION # 51
On a switched network where STP is enabled on all devices, when a downstream device detects a topology change, it continuously sends configuration BPDUs to the upstream device until the root bridge is informed of the topology change.
- A. FALSE
- B. TRUE
Answer: A
Explanation:
This statement is false . In classic STP, when a non-root switch detects a topology change, it does not continuously send configuration BPDUs upstream to notify the root bridge. Instead, it sends a Topology Change Notification (TCN) BPDU toward the root bridge through its root port. Each upstream switch acknowledges the TCN and forwards it further until it reaches the root bridge.
After the root bridge receives the topology change notification, the root bridge sets the Topology Change (TC) flag in its configuration BPDUs, and those configuration BPDUs are then propagated throughout the network. Therefore, topology-change notification and normal configuration BPDU transmission are different functions. The statement is wrong because it confuses TCN BPDUs with configuration BPDUs , and also inaccurately describes the notification behavior. HCIA-Datacom requires learners to distinguish between these BPDU types and understand how STP reacts to topology changes by accelerating MAC address aging and informing the network through the root bridge. This process helps the Layer 2 topology converge and reduces long-lasting forwarding inconsistencies after a link or port-state change.
NEW QUESTION # 52
Which of the following information is displayed when an entered command is incomplete on the Versatile Routing Platform (VRP)?
- A. Error: Too many parameters found at 'A' position
- B. Error: Incomplete command found at 'A' position
- C. Error: Ambiguous command found at 'A' position
- D. Error: Wrong parameter found at 'A' position
Answer: B
NEW QUESTION # 53
With the release of Wi-Fi 7, wireless networks are now faster, more stable, and more latency- tolerant than ever. Which of the following frequency bands are supported by Wi-Fi 7? (Select all that apply)
- A. 6 GHz
- B. 9.6 GHz
- C. 2.4 GHz
- D. 5 GHz
Answer: A,C,D
Explanation:
Wi-Fi 7 supports operation in the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, so options A, C, and D are correct. These three bands together provide flexible coverage and capacity options.
The 2.4 GHz band offers better propagation and wider coverage, while the 5 GHz and 6 GHz bands provide more channels, higher capacity, and better support for high-speed, low-latency services.
NEW QUESTION # 54
The undo command can be used in the CLI of a Huawei device to restore default settings, disable functions, or delete configurations. Which of the following are correct undo commands? (Select all that apply)
- A. < HUAWEI > system-view
[HUAWEI] undo system-view
< HUAWEI > - B. [HUAWEI] sysname TEST
[TEST] undo sysname
[HUAWEI] - C. [HUAWEI] interface GE 1/0/1
[HUAWEI-GE1/0/1] ip address 10.12.1.1 24
[HUAWEI-GE1/0/1] undo ip address - D. [HUAWEI] interface GE 1/0/1
[HUAWEI-GE1/0/1] undo portswitch
[HUAWEI-GE1/0/1]
Answer: B,C,D
Explanation:
On Huawei devices, the undo command is used to remove a previously applied configuration, disable a function, or restore a parameter to its default state. In option B , undo ip address is a valid interface-view command that removes the IP address configured on the interface. In option C , undo portswitch is also a valid interface command on switch interfaces that converts a Layer 2 interface into a Layer 3 interface when supported by the device. In option D , undo sysname restores the device name to the default hostname, which is valid in system view.
Option A is incorrect because system-view is a command used to enter system view from user view, but undo system-view is not a valid command for exiting that view. Exiting system view is done with commands such as quit, return, or by using shortcut keys. This question checks the understanding that undo only applies to configurable features and parameters, not to view-switching commands in the CLI hierarchy.
NEW QUESTION # 55
In Layer 3 in-path WLAN networking, the WAC and Fit APs are connected at Layer 3. APs can obtain the WAC's address through broadcast or DHCP.
- A. FALSE
- B. TRUE
Answer: A
Explanation:
This statement is false . In Layer 3 in-path WLAN networking , the WAC and Fit APs communicate over Layer 3, which means the APs must discover the WAC through methods that are valid across Layer 3 boundaries. Broadcast is a Layer 2 mechanism and cannot normally be used for WAC discovery across Layer
3 networks. Therefore, saying that APs can obtain the WAC address through broadcast or DHCP in this scenario is incorrect.
In Huawei WLAN deployments, Fit APs can commonly discover the WAC address through methods such as DHCP option-based discovery , DNS , or preconfigured controller information, depending on the deployment model and product features. Because the WAC and AP are not in the same Layer 2 broadcast domain in Layer 3 in-path networking, broadcast discovery is not the standard mechanism here. HCIA- Datacom stresses the difference between Layer 2 direct discovery and Layer 3 discovery methods because this affects initial AP registration, CAPWAP establishment, and troubleshooting when APs fail to go online.
Understanding the discovery mechanism is essential when planning IP addressing, DHCP options, and controller placement in enterprise WLAN designs.
NEW QUESTION # 56
The essence of communication is the transmission and exchange of information between two or more points. The three elements of communication are the sender, content, and transmission channel of the information. The receiver of the information is not included among these elements.
- A. FALSE
- B. TRUE
Answer: A
Explanation:
This statement is false because the receiver is one of the fundamental elements of communication. In basic communication theory, a complete communication process requires at least four essential elements: the sender, the information or message content, the transmission medium or channel, and the receiver. If the receiver is missing, communication cannot be completed because there is no endpoint to accept, interpret, or respond to the transmitted information.
In datacom networks, this concept maps directly to real networking scenarios. A source host generates data, the data is carried over some medium such as copper, fiber, or wireless, and a destination host receives the data. Network devices such as switches and routers assist the forwarding process, but the fundamental communication model still includes both communicating endpoints. HCIA-Datacom emphasizes the complete sender-to-receiver process when introducing network communication basics, protocol encapsulation, and forwarding. Therefore, excluding the receiver from the communication elements is conceptually incorrect. The correct understanding is that sender, receiver, information content, and channel together form the essential basis of communication.
NEW QUESTION # 57
You can enter a question mark (?) in the CLI of a Huawei switch to obtain online help. Which of the following statements is true about the meaning of < cr > in the output of the command sysname SW1?
[HUAWEI] sysname SW1?
< cr >
- A. The command is incomplete.
- B. There are too many parameters in that position.
- C. There is no keyword or parameter in that position.
- D. The entered keywords are incorrect.
Answer: C
Explanation:
In the Huawei command-line interface, the question mark ? provides real-time command help based on the current input. When the output shows < cr > , it means that the command can end at that point by pressing Enter . In other words, there is no additional keyword or parameter required in that position. Therefore, option B is correct.
In the example sysname SW1?, the device interprets SW1 as a complete and valid hostname parameter for the sysname command. Since nothing else is required after the hostname, the CLI displays < cr > to indicate command completion is allowed. This behavior is common in Huawei devices and is important for daily operation and troubleshooting because it helps engineers understand whether a command is complete, whether more arguments are needed, or whether optional parameters are available. Options about incorrect keywords or incomplete commands do not apply here, because the entered command syntax is already valid.
Understanding < cr > is a basic but important CLI skill in HCIA-Datacom operations.
============
NEW QUESTION # 58
Which of the following IP addresses cannot be configured for a host by default?
- A. 192.168.1.1/24
- B. 224.0.0.1/24
- C. 172.16.1.1/16
- D. 10.0.0.1/8
Answer: B
Explanation:
The address 224.0.0.1/24 cannot be configured as a normal host IP address by default because it belongs to the Class D multicast address range. IPv4 multicast addresses range from 224.0.0.0 to 239.255.255.255 and are reserved for multicast group communication rather than assignment to host interfaces as ordinary unicast addresses. Therefore, option D is correct.
NEW QUESTION # 59
The emergence of AI poses new requirements on data center networks. To meet AI computing requirements, a high-speed intelligent computing data center network with zero packet loss needs to be constructed. Which of the following statements are false about the requirements and solutions of intelligent computing data center networks? (Select all that apply)
- A. Measures such as single-port ultra-high bandwidth and lossless network technologies can be used to achieve a network with close to zero packet loss, but not a truly lossless network.
- B. Due to large-scale data synchronization services on the intelligent computing network, a single port must have a high bandwidth, such as 200GE or 400GE.
- C. The RDMA protocol stack is used on the intelligent computing network to reduce the transmission latency between GPU servers and physical switches.
- D. Lossless technologies such as PFC and ECN are used on the intelligent computing network to implement a network with zero packet loss.
Answer: A,C
Explanation:
The false statements are A and D. Option A is considered false in HCIA-Datacom wording because intelligent computing data center networks aim to build a lossless Ethernet fabric through coordinated technologies such as high-bandwidth interfaces, deep buffers, PFC, ECN, congestion control, and optimized forwarding. The exam-oriented knowledge point treats these technologies as solutions for a zero packet loss network design goal rather than stating that a truly lossless network cannot be achieved.
Option D is also false because RDMA is used to reduce end-to-end communication latency and CPU overhead between servers, especially for east-west traffic in AI and high-performance computing clusters. It is not specifically described as reducing latency between GPU servers and physical switches. That wording is inaccurate.
NEW QUESTION # 60
If a device running STP receives an RSTP configuration BPDU, it discards the BPDU.
- A. TRUE
- B. FALSE
Answer: A
Explanation:
A device running Standard Spanning Tree Protocol (STP) is not compatible with Rapid Spanning Tree Protocol (RSTP) BPDUs and will discard them upon receipt. STP devices cannot interpret the additional RSTP fields, leading to discarded BPDUs.
NEW QUESTION # 61

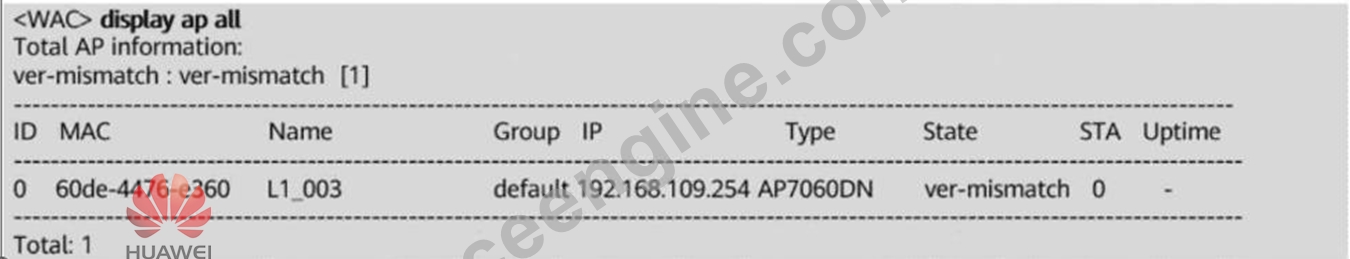

In the WAC + Fit AP networking, an AP fails to go online. The output of the display ap all command run on the WAC is shown below. According to the command output, which of the following is the possible cause of the AP's failure to go online?
- A. The AP fails the authentication.
- B. The AP fails to initialize the configuration.
- C. The AP is in the blacklist.
- D. The AP's software version does not match the WAC's software version.
Answer: D
Explanation:
The correct answer is C. In the command output, the AP state is shown as ver-mismatch. This state directly indicates a version mismatch between the AP and the WAC. In Huawei WLAN deployment, a Fit AP must use a software version that is compatible with the WAC version. If the versions do not match, the AP may be discovered by the WAC and appear in the AP list, but it cannot successfully complete the online process.
Option A is incorrect because blacklist-related failures are displayed with blacklist-related status information, not ver-mismatch. Option B is also incorrect because authentication failures normally generate authentication- related fault indications. Option D is incorrect because configuration initialization failure would not be identified by the specific ver-mismatch state.
HCIA-Datacom troubleshooting knowledge emphasizes reading AP online states carefully. Common causes of AP online failure include IP address acquisition failure, CAPWAP tunnel establishment failure, insufficient licenses, authentication problems, and version mismatch. When the state explicitly shows ver-mismatch, the troubleshooting direction is clear: check AP and WAC software compatibility and upgrade or align the software version as needed.
NEW QUESTION # 62
Which of the following commands can be used to check OSPF routes in the global routing table?
- A. display ip routing-table protocol ospf
- B. display ospf interface
- C. display ospf peer
- D. display ospf routing
Answer: A
Explanation:
To check OSPF-learned routes in the global IP routing table , the correct command is display ip routing- table protocol ospf , so option A is correct. This command filters the routing table and shows only the routes whose source protocol is OSPF. It is especially useful when verifying whether OSPF-learned routes have been successfully installed into the forwarding table after neighbor establishment and LSDB calculation.
Option B , display ospf peer, is used to check OSPF neighbor information and adjacency states, not the routing table. Option C , display ospf interface, shows OSPF-related parameters on interfaces such as timers, network type, and cost. Option D , display ospf routing, displays OSPF route information maintained by the OSPF process itself, but the question specifically asks about routes in the global routing table , which is the RIB used for actual forwarding decisions. HCIA-Datacom distinguishes between protocol-specific route information and the final routing table seen by the device. Understanding this distinction helps engineers verify whether a protocol has only learned topology information or has actually produced usable forwarding entries.
NEW QUESTION # 63
What is the broadcast address of the network that contains a host with IP address 192.168.1.147/28?
- A. 192.168.1.145
- B. 192.168.1.157
- C. 192.168.1.159
- D. 192.168.1.255
Answer: C
NEW QUESTION # 64
Which of the following is correct regarding the configuration of the trunk port and access port on a switch?
- A. Trunk ports can only send untagged frames.
- B. Access ports can only send untagged frames.
- C. Access ports can only send tagged frames.
- D. Trunk ports can only send tagged frames.
Answer: B
Explanation:
Access ports are configured for a single VLAN and thus send untagged frames by default. Trunk ports, conversely, handle traffic for multiple VLANs, tagging each frame with a VLAN ID.
NEW QUESTION # 65
During WLAN deployment, a Fit AP fails to go online on the WAC. You log in to the WAC and run the display ap online-fail-record command to locate the fault. The command output shows that the cause is Insufficient license resources . This means that the license resources on the WAC are insufficient and that you need to expand the license capacity.
- A. TRUE
- B. FALSE
Answer: A
Explanation:
This statement is true . On a Huawei WAC, the number of APs that can go online is controlled by the available license resources . If a Fit AP fails to come online and the command display ap online-fail-record shows Insufficient license resources , it means the controller does not currently have enough licensed capacity to allow additional APs to register successfully.
In this case, the administrator must expand the license capacity or adjust existing license allocation so that the AP can be admitted. This is a common WLAN deployment issue, especially when new APs are added without first verifying the current AP license limit on the WAC. HCIA-Datacom troubleshooting methodology emphasizes interpreting controller diagnostics and fault records accurately. An AP can fail to go online for many reasons, including CAPWAP reachability problems, version mismatch, authentication issues, or licensing limitations. When the failure reason explicitly indicates insufficient license resources, the troubleshooting direction is clear: the controller's AP license capacity must be checked and, if necessary, increased. This question tests the ability to map a specific WAC alarm record to the correct operational response.
NEW QUESTION # 66
What is the broadcast address of the network that contains a host with IP address
192.168.1.147/28?
- A. 192.168.1.145
- B. 192.168.1.157
- C. 192.168.1.159
- D. 192.168.1.255
Answer: C
Explanation:
A /28 subnet mask corresponds to 255.255.255.240, which means each subnet contains 16 IP addresses. The subnet boundaries in the last octet increase in steps of 16: 0, 16, 32, 48, 64, 80,
96, 112, 128, 144, 160, and so on. The host address 192.168.1.147 falls within the subnet range
192.168.1.144 to 192.168.1.159.
In that subnet, the network address is 192.168.1.144, the usable host range is 192.168.1.145 through 192.168.1.158, and the broadcast address is 192.168.1.159. Therefore, option C is correct. Option D is the first usable host address, not the broadcast address.
NEW QUESTION # 67
UDP does not guarantee data transmission reliability and does not provide packet sorting and traffic control functions. It is suitable for the traffic that has low requirements for data transmission reliability, but high requirements for the transmission speed and delay.
- A. TRUE
- B. FALSE
Answer: A
Explanation:
UDP (User Datagram Protocol) is a connectionless protocol that does not provide reliability, packet sequencing, or traffic control. These features are usually managed by TCP, which is used for applications requiring reliable data transmission. UDP's design makes it suitable for real-time applications, such as video streaming or VoIP, where speed and low latency are prioritized over reliability.
NEW QUESTION # 68
Which of the following port states are included in Rapid Spanning Tree Protocol (RSTP)?
- A. Discarding
- B. Forwarding
- C. Listening
- D. Learning
Answer: A,B,D
Explanation:
RSTP (Rapid Spanning Tree Protocol) combines the Blocking, Listening, and Disabled states into Discarding, reducing the number of states to Discarding, Learning, and Forwarding. RSTP does not use a separate Listening state, as in standard STP.
NEW QUESTION # 69
......
