CompTIA 220-1101 exam is a certification exam that focuses on the fundamental knowledge and skills required in the IT industry. 220-1101 exam is also known as the CompTIA A+ Certification Exam: Core 1. It is designed to test an individual's ability to understand and troubleshoot computer hardware and software issues, as well as basic networking concepts. 220-1101 exam covers a wide range of topics, including computer components, operating systems, security, mobile devices, and cloud computing.
NEW QUESTION # 457
Using the output below:
Which of the following is the default gateway?
- A. 255.255.255.0
- B. 172.25.1.4
- C. 172.25.1.252
- D. 172.25.1.39
Answer: C
Explanation:
The default gateway is the IP address of the router or device that connects a network to another network or the internet. In the output below, the default gateway is 172.25.1.252, as shown in the line "Default Gateway . . . .
. . . . . : 172.25.1.252". The other IP addresses are not default gateways, but either local IP addresses (172.25.1.39 and 172.25.1.4) or subnet masks (255.255.255.0).
NEW QUESTION # 458
A user's mobile phone gets really hot to the touch and does not retain a charge. The user also reports that the phone is very slow, especially while charging. Which of the following is MOST likely causing these symptoms?
- A. Broken charging port
- B. CPU overheating
- C. Defective battery
- D. Digitizer failure
Answer: A
NEW QUESTION # 459
A technician is preparing laptops for deployment to a medical department. The laptops require SSD-level encryption to be enabled, but BitLocker refuses to turn it on. An error message states that a BIOS-level setting has not been turned on. Which of the following should the technician check FIRST when troubleshooting this issue?
- A. Reorder the priority in Windows Boot Manager.
- B. Check to make sure Secure Boot is turned on.
- C. Ensure that the Trusted Platform Module is enabled.
- D. Verify that the latest updates are installed.
Answer: C
Explanation:
The Trusted Platform Module (TPM) is a hardware component that provides cryptographic functions and secure storage for encryption keys, passwords, and certificates. BitLocker requires a TPM to be enabled and activated in the BIOS or UEFI settings of the laptop in order to use SSD-level encryption. The technician should check that the TPM is enabled and activated before trying to turn on BitLocker.
NEW QUESTION # 460
Which of the following would MOST likely be used to connect one or more devices lo the internet in a SOHO?
- A. Router
- B. Wireless access point
- C. Hub
- D. Ethernet gateway
Answer: A
Explanation:
A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.
A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. Reference: CompTIA A+ Certification Exam Guide, pg. 355
NEW QUESTION # 461
A technician is troubleshooting a PC that has been experiencing random system crashes. The technician has already checked the hard drive and the RAM, and both were in good working order. Which of the following steps should the technician take next to troubleshoot the system crashes?
- A. Test the fan speed.
- B. Disable the USB ports
- C. Decrease the RAM timings.
- D. Replace the PSU
Answer: D
Explanation:
A PSU (power supply unit) is a component that converts the AC power from the wall outlet into DC power that the PC components can use. A faulty or failing PSU can cause random system crashes, as well as other problems such as noise, overheating, or no power at all. A PSU can fail due to various reasons, such as age, dust, power surges, or poor quality.
To troubleshoot a PSU, the technician can use a multimeter to measure the voltage output of the PSU connectors. The voltage should be within the acceptable range of the specifications. For example, the 12V rail should be between 11.4V and 12.6V. If the voltage is too low or too high, the PSU is likely defective and needs to be replaced.
Alternatively, the technician can try swapping the PSU with a known good one and see if the system crashes persist. If the system works fine with a different PSU, then the original PSU is the problem and should be replaced.
The other options are not likely to fix the random system crashes. Testing the fan speed may help to diagnose overheating issues, but it is not related to the PSU. Disabling the USB ports may help to eliminate potential conflicts with USB devices, but it is not related to the PSU. Decreasing the RAM timings may help to improve performance and stability, but it is not related to the PSU.
Reference:
Fix Random PC Crashes: 10 Steps to Identify and Fix Issues
Why Does Windows Crash? The 9 Most Common Reasons
NEW QUESTION # 462
An online retailer would like to add capacity to support increased sales. Additional servers have been installed.
Which of the following should be used to ensure each new server is being properly utilized?
- A. Load balancer
- B. Virtualization
- C. Clustering
- D. Round-robin DNS
Answer: A
Explanation:
Explanation
https://www.resonatenetworks.com/2020/04/29/clustering-vs-load-balancing-whats-the-difference/ A load balancer distributes network traffic evenly across multiple servers, ensuring each server is being properly utilized. This helps to prevent overloading of any individual server, which can cause downtime or slow response times for users. In this scenario, adding a load balancer would be the best way to ensure the new servers are being properly utilized. References: CompTIA A+ Certification Exam: Core 1 - Page 181
NEW QUESTION # 463
A new version of Windows was released and a piece of software vital to the engineering department will not run on the new version. Which of the following is the BEST option to enable this department to be able to continue using this software?
- A. Do not upgrade any workstations within the organization.
- B. Purchase new workstations for the engineering department.
- C. Upgrade all workstations and provide a virtual environment for the legacy software.
- D. Upgrade all workstations except those used by the engineering department.
Answer: C
Explanation:
Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.
NEW QUESTION # 464
A user reports that a printer pulls multiple sheets of paper from the paper tray instead of a single sheet. Which of the following should a technician investigate to resolve this issue? (Select two).
- A. Duplexer
- B. Fuser
- C. Pickup roller
- D. Toner cartridge
- E. Tractor feed
- F. Separation pad
Answer: C,F
Explanation:
The correct answers are C. Pickup roller and D. Separation pad.
A pickup roller is a rubber wheel that grabs the paper from the paper tray and feeds it into the printer. A separation pad is a small piece of cork or rubber that prevents more than one sheet of paper from being fed at a time. If the pickup roller or the separation pad is worn out, dirty, or damaged, it can cause the printer to pull multiple sheets of paper instead of a single sheet. This can lead to paper jams, misprints, or wasted paper.
To resolve this issue, a technician should investigate the condition of the pickup roller and the separation pad and replace them if necessary. The technician should also clean the paper tray and make sure the paper is loaded correctly and not stuck together.
A toner cartridge is a component that contains the toner powder used to create the printout on a laser printer. A tractor feed is a mechanism that uses sprockets to move continuous paper through a dot matrix printer. A duplexer is a device that allows a printer to print on both sides of the paper automatically. A fuser is a part of a laser printer that melts the toner onto the paper using heat and pressure. None of these components are related to the issue of pulling multiple sheets of paper from the paper tray.
NEW QUESTION # 465

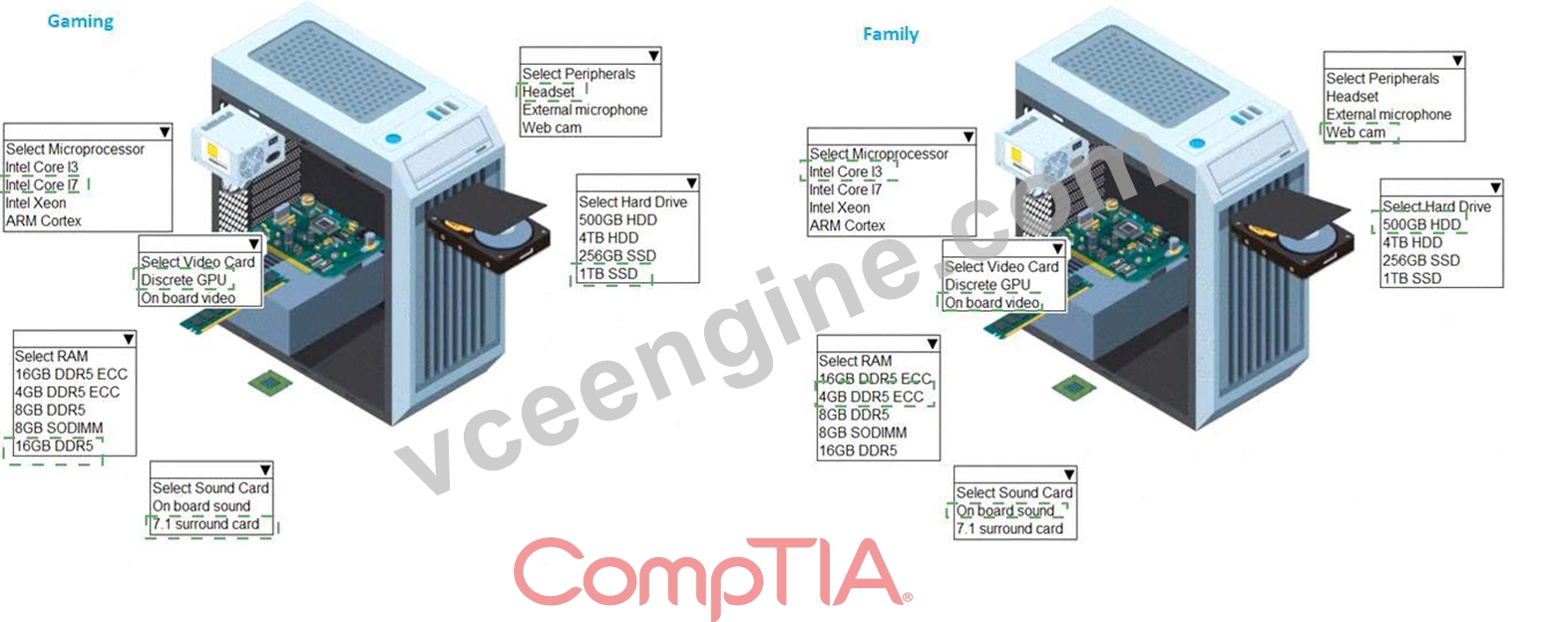

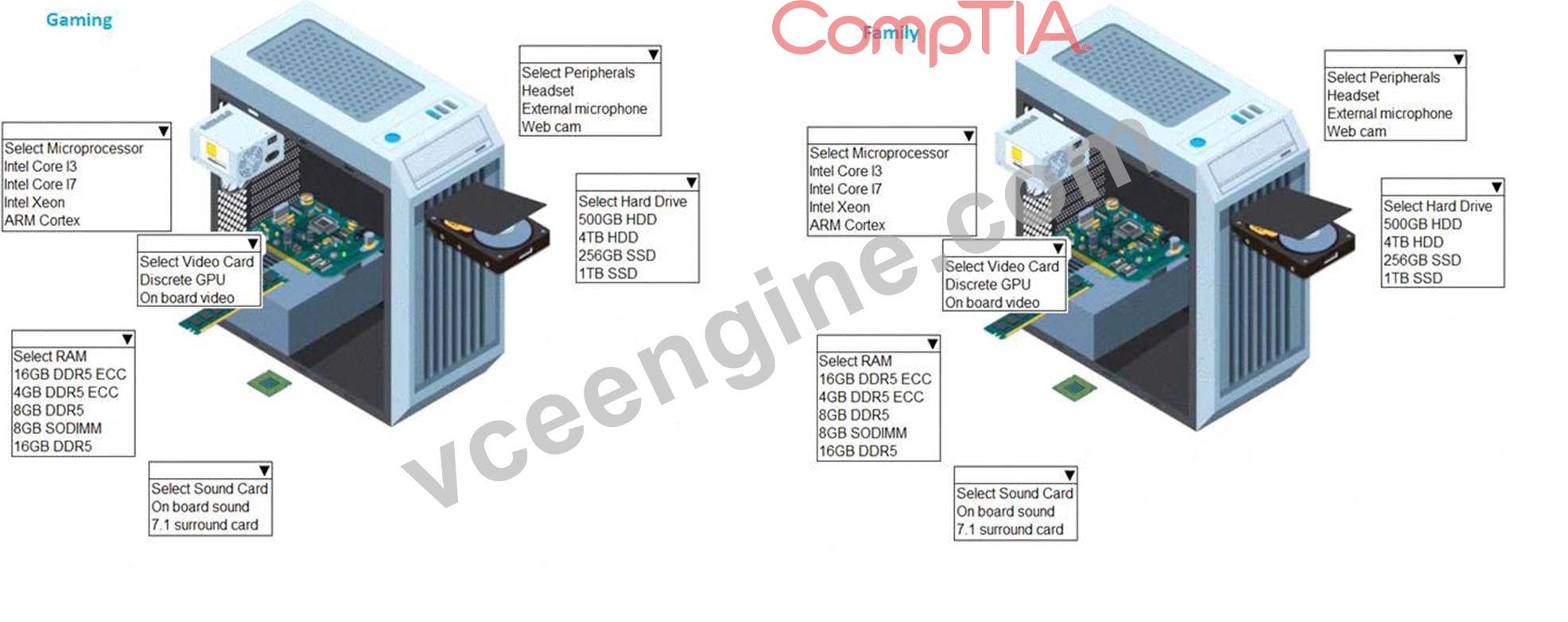

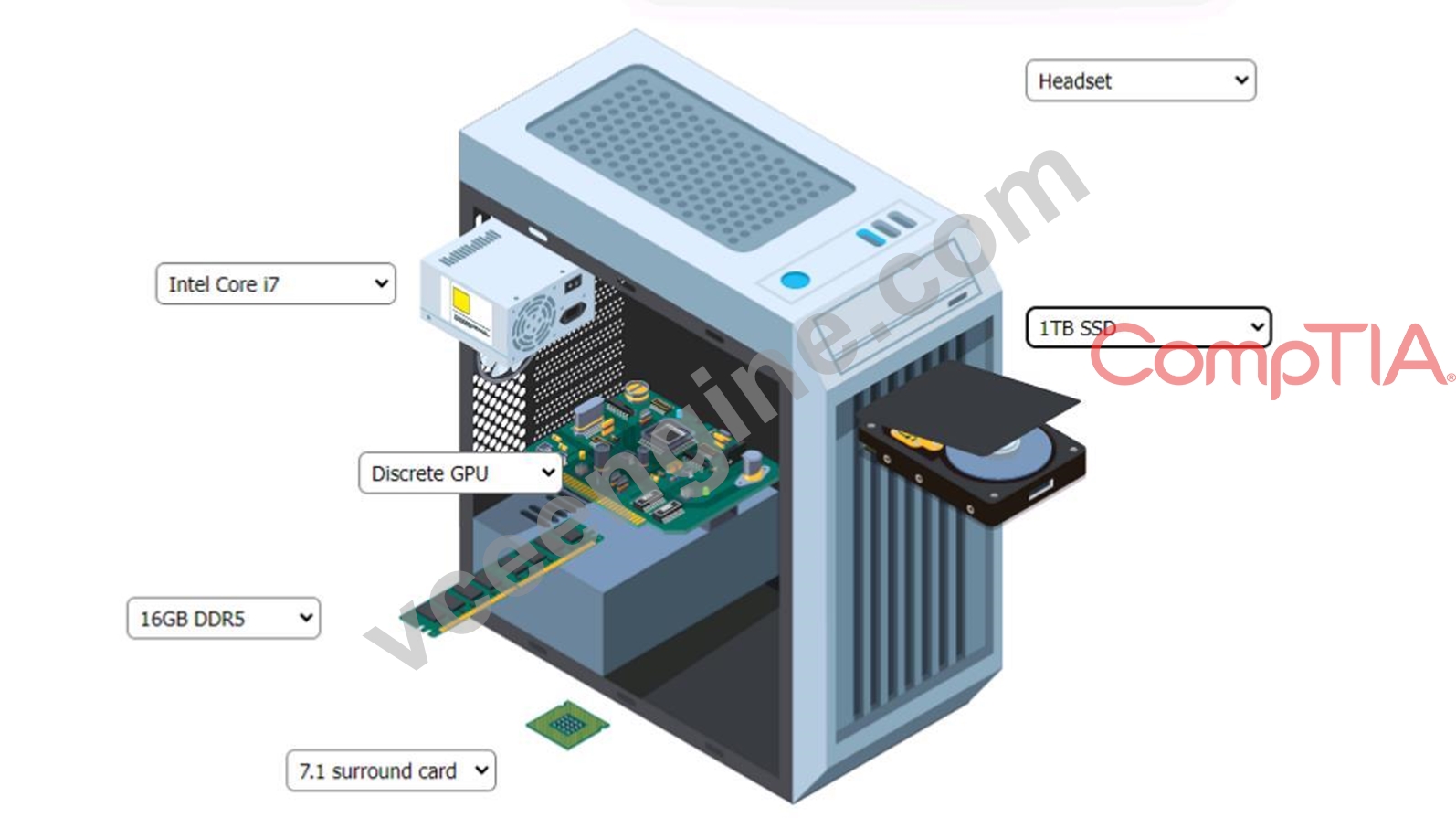

A customer has contacted you about building two new desktops. The first desktop will be a gaming workstation. The customer requirements include:
Playing the newest games at a high frame rate
Fast game load times
Enough storage to have several games installed at once
High-end audio
No concern about cost
Running the current Windows OS

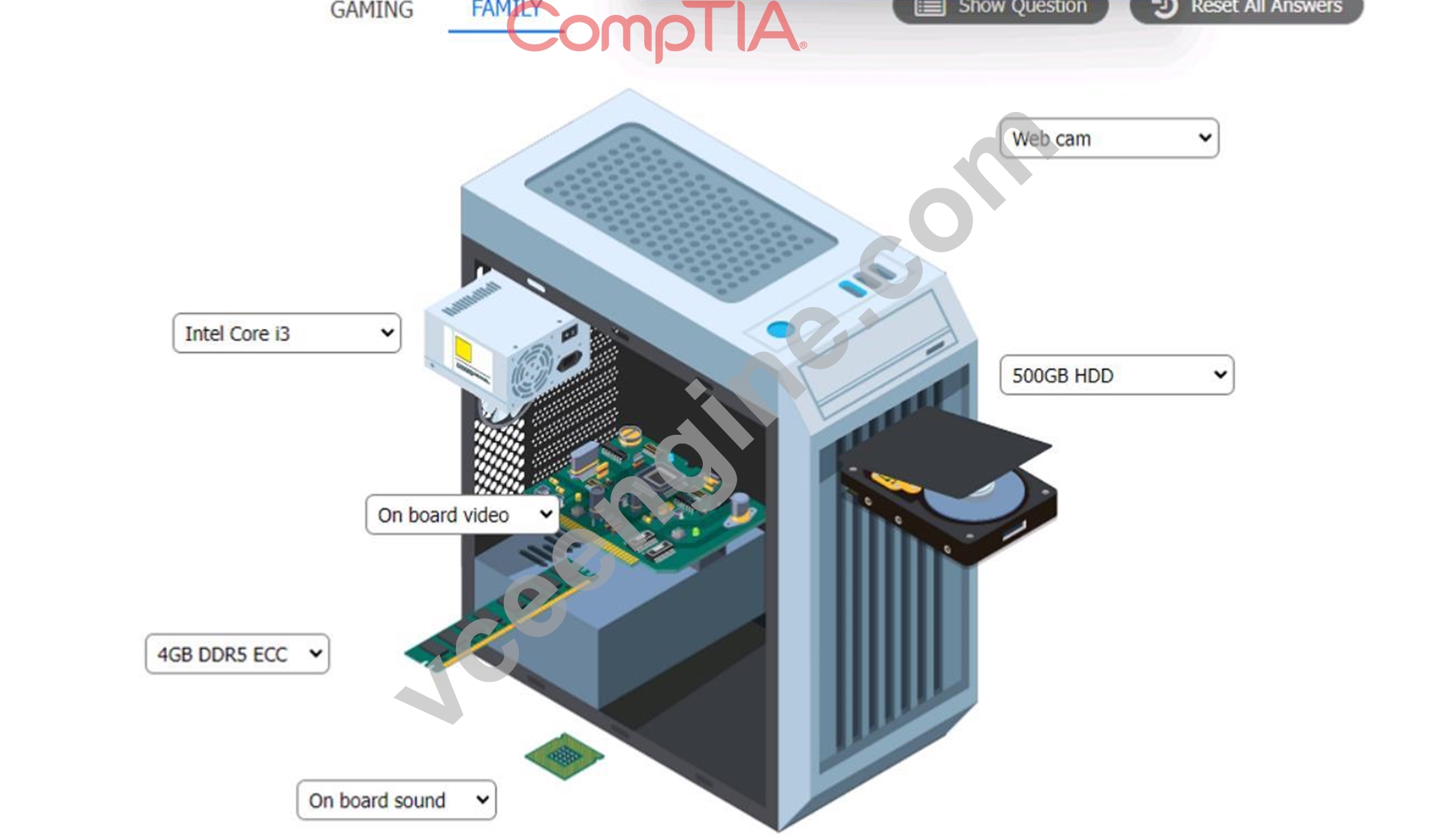

The second workstation will be a family workstation. The requirements include:
Capability for word processing, videoconferencing, and basic web surfing Minimal cost, as long as it meets the requirements Running the current Windows OS
Answer:
Explanation:
Explanation:
NEW QUESTION # 466
A user's Windows computer started running slowly after the installation of a CAD program. The computer has intermittent timeouts and often has to be rebooted to restore functionality. The computer seems to work correctly if the application is not running. Which of the following should the technician do NEXT to help troubleshoot the issue? (Choose two.)
- A. Reinstall the application.
- B. Run chkdsk on the HDD.
- C. Replace the video card.
- D. Check the Event Viewer logs.
- E. Research the requirements of the application.
- F. Install a new case fan.
Answer: D,E
Explanation:
The technician should research the requirements of the CAD program to see if the computer meets them or needs any upgrades or updates to run it properly. The technician should also check the Event Viewer logs to see if there are any errors or warnings related to the application or system performance that could indicate the cause of the problem or suggest a solution.
NEW QUESTION # 467
A technician is preparing to set up a gaming computer with the following components:
* Discrete, high-end graphics card
* Video capture card
* High-end processor
* Multiple hard drives
* USB 3.0 hub
* Sound card
Which of the following options is the MOST important for the technician to consider before building the gaming computer?
- A. 20-pin vs. 24-pin power adapter
- B. Modular power supply
- C. Power supply wattage rating
- D. Redundant power supply
Answer: C
Explanation:
This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.
The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components.
However, of the options listed, the wattage rating is the most critical consideration.
Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t
NEW QUESTION # 468
A technician wants to deploy a .msl package lo a corporate network. The technician needs to verily the application deployment will not affect other legacy applications on the end users' computers. Which of the following would the technician consider the MOST appropriate for this situation?
- A. Cross-platform virtualization
- B. Virtual sandbox
- C. Application virtualization
- D. Virtual desktop
- E. Virtual network
Answer: C
Explanation:
The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users' computers1.
NEW QUESTION # 469

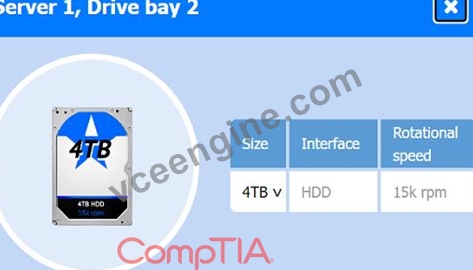

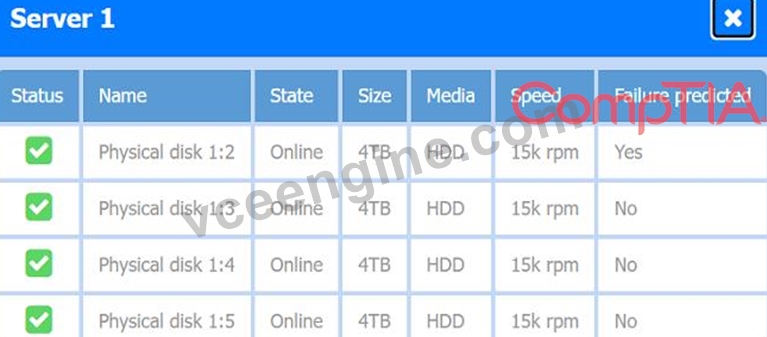

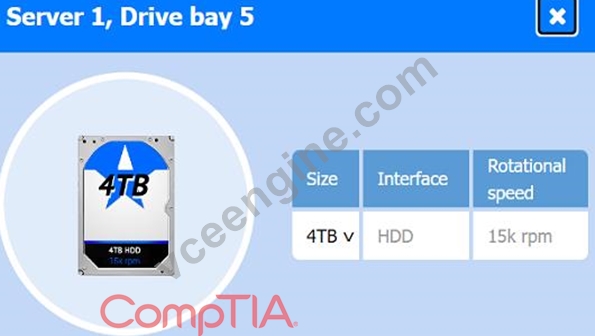

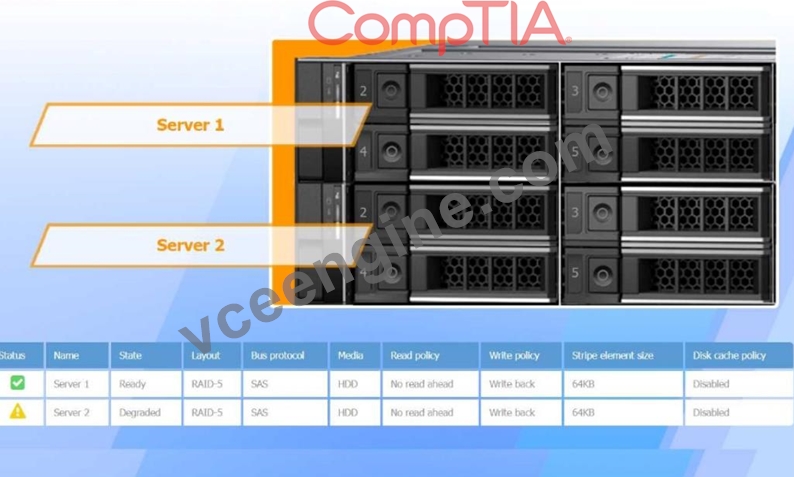

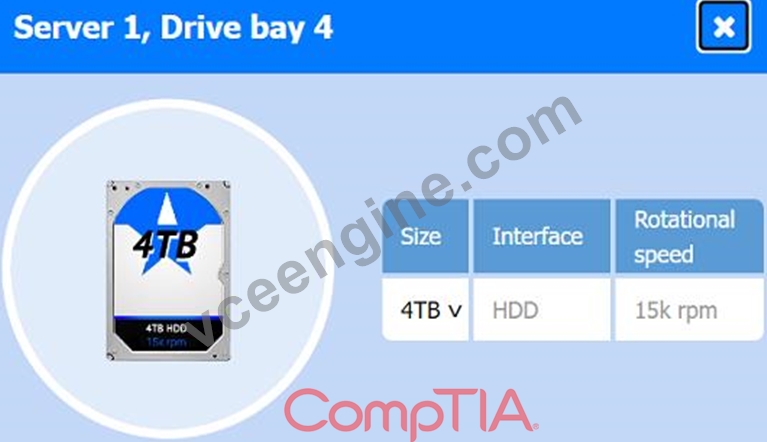

SIMULATION
A user reports poor performance on the application server.
INSTRUCTIONS

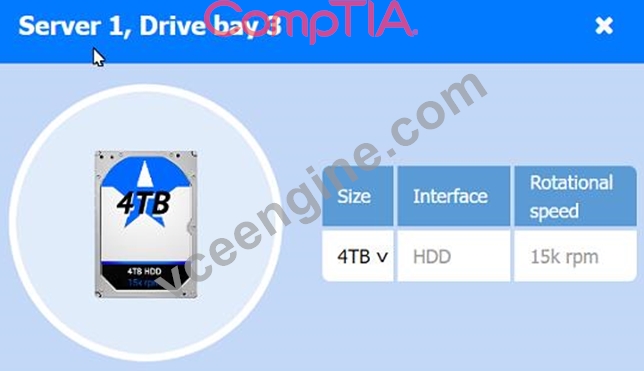

Click on Server 1 and Server 2 and review the information presented in each chart to determine which drives need to be replaced.
Select the appropriate replacement drive that should be used, for the least performance degradation to the server.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the detailed solution in explanation below
Explanation:

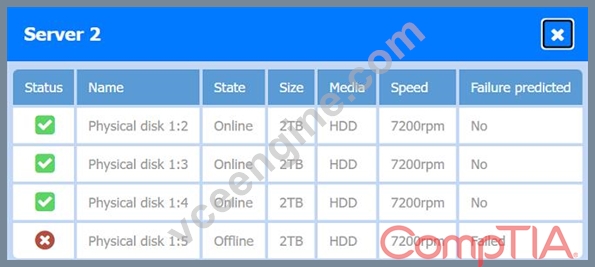

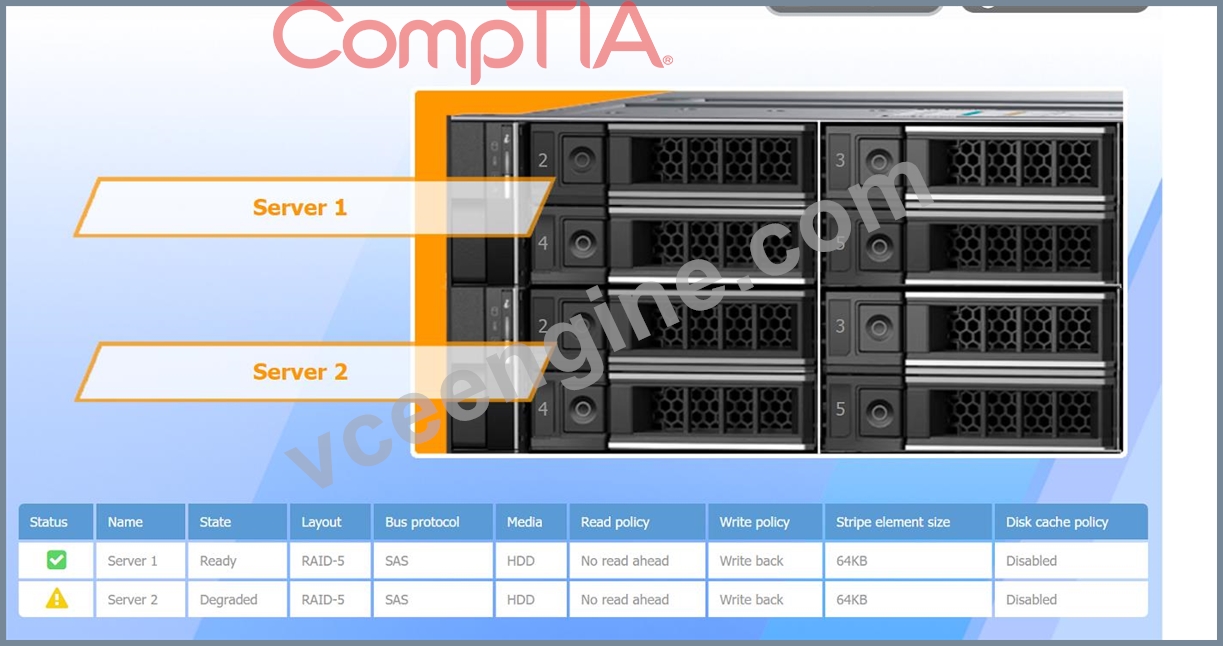

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

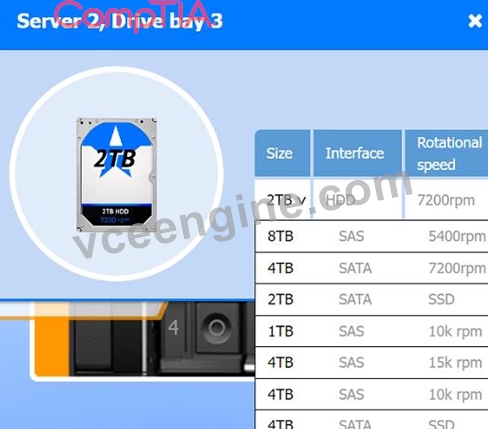

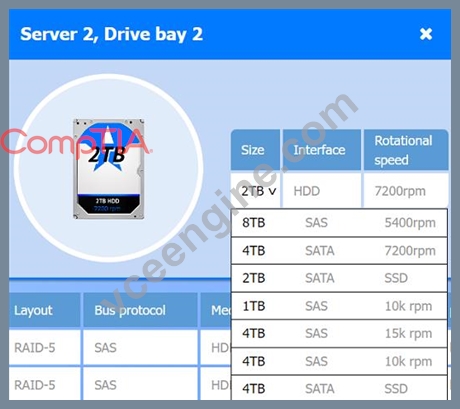

Recommended Replacement Drive:
To minimize performance degradation, the replacement drive should be:
SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).
Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.
In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.
A user reports poor performance on the
application server.
INSTRUCTIONS
Click on Server 1 and Server 2 and review
the information presented in each chart to
determine which drives need to be replaced.
Select the appropriate replacement drive
that should be used, for the least
performance degradation to the server.
NEW QUESTION # 470
A customer is using a satellite internet connection that is experiencing slowness. A technician notices high latency while pinging, but the download test is performing perfectly with very good download speeds. Which of the following represents the NEXT action the technician should perform?
- A. Guide the customer on how to upgrade the internet plan with the provider in order to improve latency.
- B. Replace the modem because it is not working correctly based on the test result.
- C. Restart the modem and run an online internet connection and speed diagnostic tool.
- D. Explain to the customer this is not an issue; this situation is normal for this type of internet connection.
Answer: C
Explanation:
The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.
High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam:
Core 1 - Page 102
NEW QUESTION # 471
A technician is troubleshooting a PC that will not boot. The case fans run when the power is switched on, but the PC will not POST, and there is no signal to the monitor. The technician opens the case and notices several capacitors appear swollen. Which of the following is the MOST likely reason why the PC will not boot?
- A. Defective CPU
- B. Defective RAM
- C. Defective power supply
- D. Defective motherboard
Answer: D
NEW QUESTION # 472
Which of the following virtualization technologies allows Linux and Windows operating system to run concurrently?
- A. Sandbox
- B. Legacy OS
- C. Test environment
- D. Cross-platform
Answer: D
Explanation:
Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)
NEW QUESTION # 473
Which of the following should the data center hardware technician implement to ensure maximum uptime for customers' virtual machines?
- A. Cloud storage backup
- B. AC voltage regulator
- C. Uninterruptible power supply
- D. Line conditioner
Answer: C
Explanation:
An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime.
NEW QUESTION # 474
A technician needs to assign an IP address to a Windows PC, but a network connection is unavailable. Which of the following tools would be best for the technician to use?
- A. APIPA
- B. DHCP
- C. DNS
- D. TFTP
Answer: A
Explanation:
Automatic Private IP Addressing (APIPA) allows a Windows PC to automatically assign itself an IP address in the range of 169.254.0.1 to 169.254.255.254 when it's unable to obtain an IP address from a DHCP server. This feature is particularly useful in situations where the PC cannot connect to the network or when DHCP services are unavailable. While APIPA addresses are not routable and thus not suited for large networks, they enable basic networking functionality for small ad-hoc or local networks.
NEW QUESTION # 475
......
