NEW QUESTION # 19
A user is attempting to watch a high-definition video being streamed from the media server over the network. However, the user complains that the experienced video quality is poor. While logged on to router B, a Juniper Networks device, you notice that video packets are being dropped.
In this scenario, what would solve this problem?
- A. Adjust the scheduler for the expedited-forwarding forwarding class to support a higher transmit rate.
- B. Adjust the scheduler-map to support a higher transmit rate.
- C. Adjust the expedited-forwarding BA classifier to router B's ge-0/0/0 interface to support a higher transmit rate.
- D. Adjust the expedited-forwarding BA classifier on router B's ge-0/0/1 interface to support a higher transmit rate.
Answer: A
Explanation:
transmit rate is set on the scheduler, BA and classifier do not have transmit rate. scheduler-map=maps schedulers to fwd classes
NEW QUESTION # 20

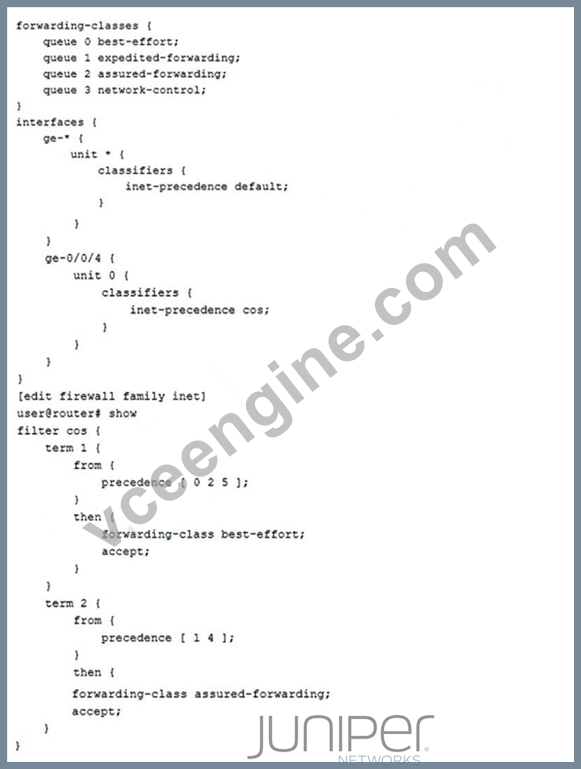

Referring to the exhibit, traffic ingresses on interface ge-0/0/3 and egresses on interface ge-0/0/4.
Which queue does traffic with the IP precedence value of 100 use?
- A. expedited-forwarding
- B. network-control
- C. assured-forwarding
- D. best-effort
Answer: A
Explanation:
* Understanding the Configuration:
* The provided configuration and output snippets show how traffic is classified and assigned to different forwarding classes based on the IP precedence values.
* The inet-precedence classifier maps specific IP precedence values to forwarding classes with associated loss priorities.
* Review of Classifiers:
* IP Precedence Value 100:
* The IP precedence value 100 in binary is represented as 100 (binary for 4).
* Matching with Classifiers:
* According to the configuration shown in the exhibit:
classifiers {
inet-precedence cos;
}
* The classifier cos maps the following:
forwarding-class expedited-forwarding;
loss-priority low code-points 100;
* Conclusion:
* The IP precedence value 100 matches the expedited-forwarding forwarding class with low loss-priority as per the configuration.
NEW QUESTION # 21
Referring to the exhibit, how will router E quickly learn that the remote MAC addresses are no longer reachable through the router attached to the failed link?
- A. Router E receives Type 2 withdrawal messages from router D.
- B. Router E receives Type 1 withdrawal messages from router D.
- C. Router E receives Type 1 withdrawal messages from router C.
- D. Router E receives Type 2 withdrawal messages from router C.
Answer: B
NEW QUESTION # 22
Which address range is used for source-specific multicast?
- A. 233.0.0.0/8
- B. 239.0.0.0/8
- C. 232.0.0.0/8
- D. 224.2.0.0/16
Answer: C
NEW QUESTION # 23

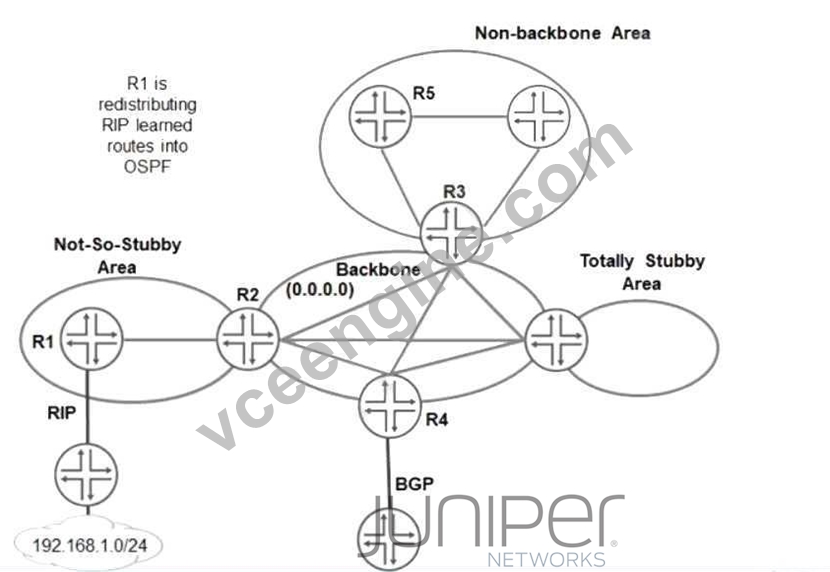

Referring to the exhibit, which LSA type is used to advertise 192.168.1.0/24 to R5?
- A. Type 7
- B. Type 4
- C. Type 3
- D. Type 5
Answer: B
NEW QUESTION # 24
You are redistributing static routes into an OSPF area. Which two statement are true is this scenario? (Choose two.)
- A. The routes can be advertised in type LSAs.
- B. The area must be the backbone area.
- C. The area must be stub area.
- D. The external route advertisements have a domain scope.
Answer: A,B
NEW QUESTION # 25
You are adding VNI 101 to your EVPN-VXLAN network, but traffic is not being sent to received.
Referring to the exhibit, which configuration statement will solve the problem?
- A. set routing-instances EVPN1 bridge-domains BD-101 vxlan vni 101
- B. set routing-instances EVPN1 vrf-table-label
- C. set routing-instances EVPN1 vxlan encapsulate-inner-vlan
- D. set routing-instances EVPN1 instance-type evpn
Answer: D
NEW QUESTION # 26
You have configured 802.1X single supplicant mode on the access switch. The VoIP phone does not support 802.1X authentication.
Referring to the exhibit, which statement is true?
- A. The VoIP phone will be able to communicate over the network after the workstation authenticates.
- B. The VoIP phone will not be able to communicate over the network.
- C. Authentication must be changed to multiple supplicant mode for this solution to work.
- D. MAC bypass must be configured for the VoIP phone for this solution to work.
Answer: A
NEW QUESTION # 27
When configuring connectivity to a VoIP enabled phone, which two statements are correct?
(Choose two.)
- A. The switch places voice traffic in the best-effort forwarding class by default.
- B. The telephone device can signal to the switch which VLAN tag it will place on voice traffic.
- C. The switch places voice traffic in the expedited forwarding class by default.
- D. The switch can signal to the phone device which VLAN tag it should use for voice traffic.
Answer: C,D
NEW QUESTION # 28
Remote branches connect to the corporate WAN through access switches. The access switches connect to access ports on the WAN distribution switch, as shown in the exhibit. L2PT has previously been configured on the tunnel Layer 2 traffic across the WAN. You decide to move the L2PT tunnel endpoints to the access switches. When you apply the L2PT configuration to the access switches, the ports that connect the access switches to the distribution switch shut down.
Which action would solve this problem?
- A. Disable the BPDU block function on the access switches.
- B. Configure the links between the access switches and the distribution switch as a trunk port.
- C. Configure a GRE tunnel to encapsulate the L2PT traffic across the WAN.
- D. Disable the BPDU block function on the distribution switch.
Answer: B
Explanation:
* Understanding the Problem:
* The ports between the access switches and the distribution switch are shutting down when the L2PT configuration is applied. This typically happens due to a mismatch in port configurations or protocol incompatibilities.
* Examining the Configurations:
* L2PT (Layer 2 Protocol Tunneling) allows tunneling of Layer 2 traffic, which includes protocols like STP (Spanning Tree Protocol), CDP (Cisco Discovery Protocol), VTP (VLAN Trunking Protocol), etc. over a Layer 2 network.
* If the L2PT is applied on access ports, it may lead to conflicts or shut down the ports as access ports are typically not configured to handle Layer 2 protocol traffic beyond their designated VLAN.
* Solution: Configure Trunk Ports:
* By configuring the links between the access switches and the distribution switch as trunk ports, you allow multiple VLANs to be carried over a single physical link. Trunk ports can carry tagged traffic for multiple VLANs, which includes the tunneled Layer 2 protocols.
* This setup prevents the ports from shutting down and enables the correct tunneling of Layer 2 protocols.
References:
* Juniper Documentation on L2PT Configuration
* Troubleshooting Layer 2 Protocol Tunneling Issues
NEW QUESTION # 29
Which statement is correct about MSTP?
- A. MSTP uses stacked VLAN tags to extend a Layer 2 Ethernet connection between multiple sites.
- B. MSTP dynamically manages VLAN registration in a LAN.
- C. MSTP enables dynamic discovery of Layer 2 neighbors.
- D. MSTP enables mapping multiple independent spanning-tree instances onto one physical topology.
Answer: D
NEW QUESTION # 30
What allows non-Web enabled devices to access the network on a port configured for captive portal?
- A. LLDP can be used to query the type of device that is attempting to access the network, and predefined device types can be allowed to bypass the captive portal process.
- B. A MAC address white list can be configured on the switch to allow specific MAC addresses to bypass the captive portal process.
- C. Authentication credentials for specific devices can be preconfigured on the switch for automatic authentication.
- D. Captive portal can be configured to only prompt for credentials when HTTP or HTTPS traffic is requested on a port to allow on-HTTP enabled devices access to the network.
Answer: B
NEW QUESTION # 31
You are asked to enforce user authentication using a captive portal before users access the corporate network.
Which statement is correct in this scenario?
- A. All Web browser requests are redirected to the captive portal until authentication is successful.
- B. HTTPS is the default protocol for a captive portal.
- C. When enabled, a captive portal must be applied to each individual interface.
- D. A captive portal can be bypassed using an allowlist command containing a device's IP address.
Answer: A
NEW QUESTION # 32
Referring to the exhibit, which statement is true?
- A. R1 is a backbone router.
- B. R1 is an ABR.
- C. R1 is an ASBR.
- D. R1 has the B bit set.
Answer: C
NEW QUESTION # 33
You are deploying new Juniper EX Series switches in a network that currently is using Cisco's Per- VLAN spanning tree plus (PVST+) and you must provide compatibility with this environment.
Which spanning tree protocol do you deploy in this scenario?
- A. VSTP
- B. RSTP
- C. STP
- D. MSTP
Answer: A
Explanation:
VSTP has the following benefits:
Connects devices that are not part of the network
Compatible with Cisco PVST+
VSTP and RSTP are the only spanning-tree protocols that can be configured concurrently on a device.
VSTP Restrictions
VSTP has these restrictions:
The EX Series switches EX4300, EX4600 and the QFX platforms QFX5100,QFX3500,QFX3600 support 510 Vlans on VSTP.
VSTP is not supported on the SRX platform - just STP/RSTP/MSTP are supported on SRX Series.
On EX Series (except EX9200) and QFX Series switches running Junos OS that supports ELS- VSTP can support up to 510 VLANs.
On EX9200 switches-VSTP can support up to 4000 VLANs.
On an EX Series switch running Junos OS that does not support ELS-VSTP can support up to
253 VLANs.
NEW QUESTION # 34
Referring to the exhibit, which two statements are correct? (Choose two.)
- A. The BGP neighbor cannot advertise EVPN related routes.
- B. The BGP neighbor can advertise EVPN related routes.
- C. The BGP neighbor can advertise L3 VPN related routes.
- D. The BGP neighbor cannot advertise L3 VPN related routes.
Answer: B,C
NEW QUESTION # 35
Which two statements are correct about a functional ESI LAG interface? (Choose two )
- A. The ESI values must be the same
- B. The ESI values must be different
- C. The LACP system ID must be different
- D. The LACP system ID must be the same
Answer: A,D
NEW QUESTION # 36
You are implementing the route summarization feature of OSPF.
Which two results do you achieve in this scenario? (Choose two.)
- A. It provides optimal routing in the network.
- B. It reduces the impact of topology changes on a device.
- C. It helps in migrating to future multi-area OSPF network designs.
- D. It reduced the routing table size, enabling devices to store and process less information.
Answer: B,D
Explanation:
OSPF Route Summarization Benefits:
* Reduces Routing Table Size: By summarizing routes, multiple specific routes are combined into a single route. This reduces the number of entries in the routing table, making it more efficient and easier for the devices to process. This is critical in large networks to maintain performance and manageability.
* Reduces Impact of Topology Changes: When a topology change occurs in one of the summarized routes, it does not need to propagate throughout the entire network. Only the summary route may need to be updated, which minimizes the impact and limits the scope of updates needed.
Implementation in OSPF:
* Configuration Example:
shell
Copy code
set protocols ospf area 0.0.0.0 range 10.1.0.0/16
* This command summarizes the routes in area 0.0.0.0 to a single route of 10.1.0.0/16.
References:
* The documents provided, such as "network-mgmt.pdf" and other relevant configuration guides, emphasize these benefits as fundamental to efficient OSPF deployment.
NEW QUESTION # 37
Referring to the exhibit, which two statements are correct? (Choose two.)
- A. The ge-0/0/10 interface supports PoE+.
- B. If the total power consumption exceeds 90 watts, the ge-0/0/11 interface will continue to receive power.
- C. The maximum wattage that this switch can allocate to attached Ethernet devices is 100 watts.
- D. PoE is not enabled on the ge-0/0/0 interface.
Answer: A,C
Explanation:
POE is enabled in the interface ge-0/0/0 but nothing is connected to it. switch is in AT mode (poe+) and interface ge-0/0/11 supports poe+ judging by maximun wattage.
NEW QUESTION # 38
Click the Exhibit button.
You receive the same 75.100.0.0/16 route from all four ISPs to which you are connected.
Referring to the exhibit, which ISP's route will be selected as active?
- A. ISP-D
- B. ISP-B
- C. ISP-A
- D. ISP-C
Answer: A
Explanation:
https://www.juniper.net/documentation/en_US/junos/topics/reference/general/routing-protocols- address-representation.html
NEW QUESTION # 39
Which BGP message type contains NLRI information?
- A. update
- B. open
- C. keepalive
- D. notification
Answer: A
NEW QUESTION # 40
......
